correct fire damper upgrade with PA board

fire damper upgrade

  • fire dampers ≤ 600x300mm, upgrade towards fire compartment:
    – fire damper support onto floor, not onto wall
    – in case of wall deformation, adjacent joints fire damper – wall remain intact
    – no extra expansion unit required
  • constructive element:
    – flexible walls ≥ 100mm
    – rigid walls ≥ 100mm
    – view installation in walls
  • fire resistance acc. EN 1366-2:

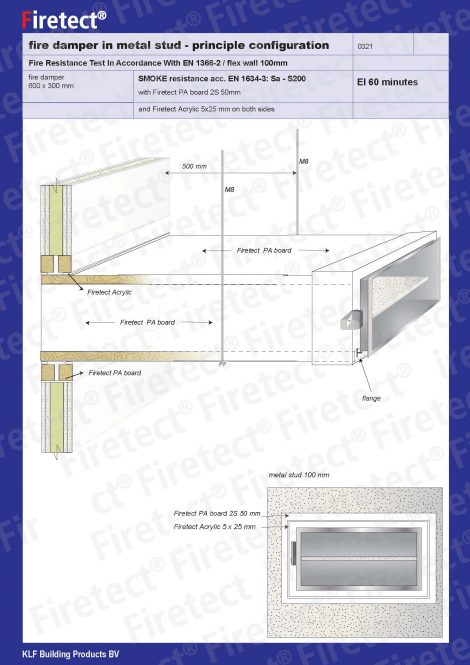

    – EI 60, principle configuration
    – smoke control acc. EN 1634-3
  • easy + correct upgrade:
    – always apply acc. DoP No. CPR-14/0260-board
    – support fire damper onto floor with M8 bolts

    – cut PA board to size:
    1 layer PA board for cladding towards fire compartment
    – 2x PA board strips for a tight-fit positioning in opening

    – ‘butter’ all cross cut edges of PA board + opening with PA coating
    – position PA board tight-fit + butt joint
    – use PA spirals for board-to-board connections
    – seal off adjacent joints with 5mm Acrylic or PA sealer
    [dkpdf-button]

fire damper upgrade

product development by common practice

Firetect, it's a system!

fire damper upgrade
- with PA board cladding
- deformation "proof"

INTERCHANGEABLEINTERCHANGEABLE

use Firetect Acrylic or PA sealer to seal off

EASYEASY

no expansion unit required

CERTIFIEDCERTIFIED

proven fire resistant perfomances related to application

fire damper upgrade

with PA board
